Fujifilm X-T5 Review - Specifications

Jeremy Gray
Jeremy Gray
Jeremy Gray Editor
View all article
By Jeremy Gray
Last updated 11/02/2022

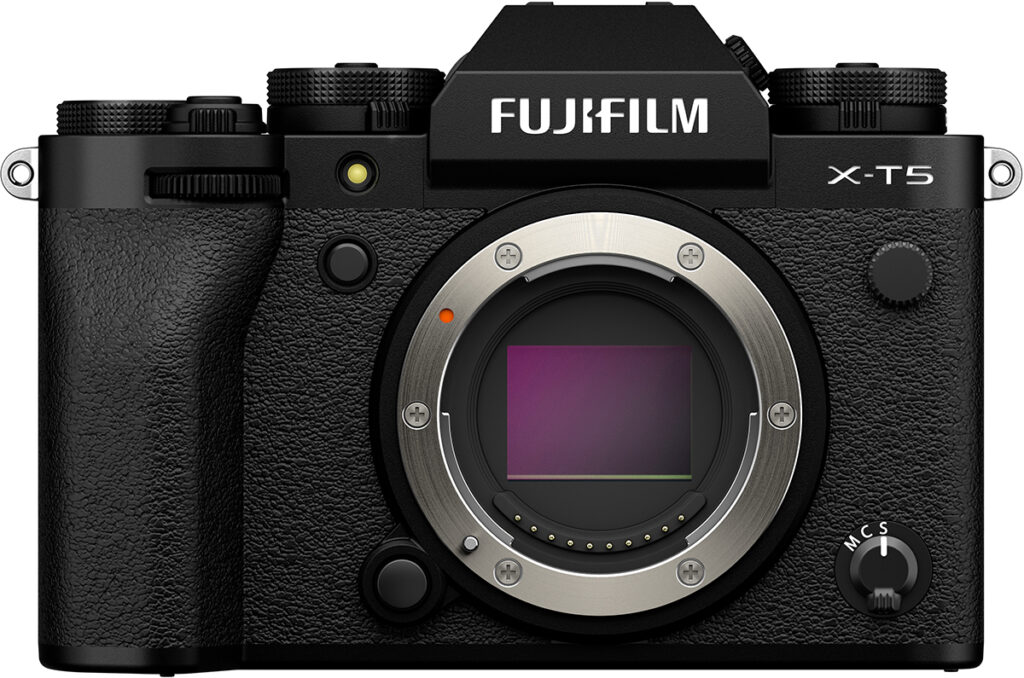

image of Fujifilm X-T5
Imaging-Resources is reader-supported. When you buy through links on our site, we may earn an affiliate commission. Read More

Links

Auto Focus

  • Auto Focus: Yes
  • Auto Focus Type: Hybrid Phase/Contrast Detect AF: 425 selectable focus points, 3.33 million phase-detect pixels; Single point AF: 13x9 / 25x17 (Changeable size of AF frame); Zone AF: 3x3 / 5x5 / 7x7 from 117 areas on 13×9 grid; Wide/Tracking AF: Yes (AF-S: Wide / AF-C: Tracking); All: Yes; Face/Eye Detection; Subject Detection (Animal/Bird/Automobile/Motorcycle&Bike/Airplane/Train)
  • Auto Focus Assist Light?: Yes
  • Manual Focus: Yes

Power

  • Battery Form Factor: Proprietary NP-W235
  • Usable Battery Types: Lithium-ion rechargeable
  • Batteries Included: 1 x Proprietary NP-W235 Lithium-ion rechargeable
  • Battery Charger Included (dedicated charger or AC/USB adapter): No
  • Dedicated Battery Charger Included: No
  • Internal Charging Supported: Yes

Lens & Optics

  • Lens Mount: Fujifilm X
  • Lens: Fujinon XF XF 16-80mm f/4 R OIS WR; 16 elements in 12 groups, including 1 ED and 3 aspherical elements; Super EBC coating
  • Focal Length (35mm equivalent): 24 - 122mm
  • Focal Length (actual): 16 - 80mm
  • Zoom Ratio: 3.06x
  • Aperture Range: f/4 - f/22; 9 diaphragm blades
  • Integrated ND Filter: No
  • Normal Focus Range: 30 cm to Infinity 11.8 in to Infinity
  • Filter Thread: 58.0mm
  • Thread Type: n/a
  • Optical Image Stabilization: No
  • Digital Zoom: Yes

Image Sensor

  • On-Sensor Phase Detect: Yes
  • Sensor Type: CMOS
  • Effective Megapixels: 40.2
  • Sensor Format: APS-C
  • Approximate Pixel Pitch: 3.04 microns
  • Focal Length Multiplier: 1.5x
  • Aspect Ratio: 3:2
  • Color Filter Type: X-Trans 5
  • Anti Aliasing Filter: Not needed
  • Self-Cleaning: Yes
  • Sensor shift image stabilization: Yes

Image Storage

  • Usable Memory Types: SD / SDHC / SDXC
  • UHS Support: UHS-II
  • Dual Card Slots: Yes
  • RAW Capture Support: Yes
  • Uncompressed Format: .RAF 14-bit RAW, uncompressed or lossless compression; RAW + JPEG; RAW + HEIF; TIFF (8/16-bit)
  • Included Memory: No memory included

Image Capture

  • Image Resolution: 7728 x 5152 (39.8 MP, 3:2), 6864 x 5152 (35.4 MP, 4:3), 7728 x 4344 (33.6 MP, 16:9), 6432 x 5152 (33.1 MP, 5:4), 5152 x 5152 (26.5 MP, 1:1), 5472 x 3648 (20.0 MP, 3:2), 4864 x 3648 (17.7 MP, 4:3), 5472 x 3080 (16.9 MP, 16:9), 4560 x 3648 (16.6 MP, 5:4), 3648 x 3648 (13.3 MP, 1:1), 3888 x 2592 (10.1 MP, 3:2), 3464 x 2592 (9.0 MP, Other), 3888 x 2184 (8.5 MP, 16:9), 3264 x 2592 (8.5 MP, Other), 2592 x 2592 (6.7 MP, 1:1), 9600 x 2160 (20.7 MP, Other), 9600 x 1440 (13.8 MP, Other), 6400 x 2160 (13.8 MP, Other), 6400 x 1440 (9.2 MP, Other)
  • Image File Format: JPEG (v2.3); HEIF (4:2:2 10-bi, .RAF 14-bit RAW, uncompressed or lossless compression; RAW + JPEG; RAW + HEIF; TIFF (8/16-bit)
  • Continuous-mode frames/second: 20.0

General

  • Size: 5.1 x 3.6 x 2.5 in. (130 x 91 x 64 mm)
  • Waterproof: No
  • Waterproof Depth: n/a
  • Model Number: X-T5
  • Alternate Model Number(s): Fuji X-T5
  • Camera Format: Compact System Camera
  • Currently Manufactured: Yes
  • Retail Price: $1699.95
  • Date Available: TBD
  • Tripod Mount: Yes

Viewfinder

  • Viewfinder: EVF / LCD
  • Viewfinder Type: EVF: 0.5-inch 3.69M-dot OLED with 100% coverage, 0.8x magnification (35mm format equivalent), 24mm eyepoint (from the rear end of the camera's eyepiece), -4 to +2 diopter adjustment, eye sensor
  • Focus Peaking: Yes
  • EVF Resolution: 3,690,000 dots (1,230,000 pixels)

Exposure

  • Exposure Compensation: +/- 5.0EV in 0.3EV steps
  • Metering Modes: TTL 256-zones metering; Multi, Spot, Average, Center-weighted
  • Program Auto Exposure: Yes
  • Aperture Priority: Yes
  • Shutter Priority: Yes
  • Full Manual Exposure: Yes
  • Creative Exposure Modes: Film Simulation: PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Black&White, Black&White+Ye Filter, Black&White+R Filter, Black&White+G Filter, Sepia, ACROS, ACROS+Ye Filter, ACROS+R Filter, ACROS+G Filter, ETERNA/Cinema, ETERNA/Bleach Bypass; Advanced Filter: Toy camera, Miniature, Pop color, High-key, Low-key, Dynamic tone, Soft focus, Partial color (Red, Orange, Yellow, Green, Blue, Purple); Dynamic Range Setting: AUTO (100-400%), 100%, 200%, 400%; Dynamic Range Priority: Off, Auto, Weak, Strong; Panorama
  • Self Timer: 2 or 10 seconds
  • Maximum ISO (native): 12800
  • High Resolution Composite: No
  • Minimum ISO (native): 125
  • ISO Settings: AUTO (3) with selectable limits, ISO 125-12800, Extended output sensitivity equivalent to ISO 64, 80,100, 25600 and 51200
  • Auto ISO Mode: Yes
  • White Balance Settings: Auto (WHITE PRIORITY, AUTO, AMBIENCE PRIORITY), Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light, Underwater, Custom (3), Color Temperature (2,500-10,000K)
  • Shutter Speed Range: 1/180000 - 3600 sec
  • Bulb Mode: Yes

Video Capture

  • HD Video Out: Yes
  • HD Video Connection: HDMI
  • Can take movies: Yes
  • Movie Resolution: 6240x4160 (30p) 4096x2160 (60p/​50p/​30p/​25p/​24p/​23.98p) 3840x2160 (60p/​50p/​30p/​25p/​24p/​23.98p) 2048x1080 (60p/​50p/​30p/​25p/​24p/​23.98p) 1920x1080 (60p/​50p/​30p/​25p/​24p/​23.98p) 1920x1080 (120p/​100p)
  • Movie File Format: MOV (MPEG-4 AVC/H.264, HEVC/H.265, Audio: Linear PCM / Stereo sound 24bit / 48KHz sampling); MP4 (MPEG-4 AVC/H.264, Audio: AAC)
  • Movie File Format: MOV (MPEG-4 AVC/H.264, HEVC/H.265, Audio: Linear PCM / Stereo sound 24bit / 48KHz sampling); MP4 (MPEG-4 AVC/H.264, Audio: AAC)
  • Composite Video Out: No
  • NTSC/PAL Switchable Video: n/a
  • Video Usable as Viewfinder: n/a

Flash

  • Flash Exposure Compensation: +/- 2.0 EV in 0.3EV steps
  • External Flash Connection: Hot Shoe, PC Sync Terminal
  • Built-In Wireless Flash Control: Full TTL exposure
  • Built-in Flash: No
  • Flash Modes: Red-eye removal OFF: Auto, Forced Flash, Suppressed Flash, Slow Synchro, Rear-curtain Synchro. Red-eye removal ON: Red-eye Reduction Auto, Red-eye Reduction & Forced Flash, Suppressed Flash, Red-eye Reduction & Slow Synchro, Red-eye Reduction & Rear-curtain Synchro.
  • Flash Guide Number (ISO 100): 8.0 m / 26.2 ft.
  • Flash Range Description: Bundled EF-X8 flash is rated with a Guide Number of 8m at ISO 100 or 11m at ISO 200
  • Max Flash Sync: 1/250

Performance Timing

  • JPEG shooting speed in burst mode (fps, max resolution): 20.0

Display

  • Rear Display Size (inches): 3.0
  • Rear Display Resolution: 1,840,000 dots (613,333 px)
  • Touchscreen: Yes
  • Articulating Screen: Yes
  • Tilt Swivel Screen: Yes
  • Selfie Screen: Yes
  • Top Deck Display: No
  • Eye-level Viewfinder: Yes
  • Rear Display: Yes

Connectivity

  • Bluetooth: Yes
  • Built-In GPS: No
  • Microphone Jack: Yes
  • Headphone Jack: Yes
  • External Connections: USB 3.0 Super Speed,Bluetooth,WiFi
  • PictBridge Compliant: No
  • DPOF Compliant: Yes
  • Remote Control: Yes
  • Remote Control Type: Threaded cable release, optional wired, Wi-Fi and Bluetooth
  • Connections (extended): USB Type-C (USB3.2 Gen2x1), HDMI (Type A), PC-Sync, 3.5mm stereo mic jack, 3.5mm stereo headphone jack, 2.5mm remote jack
  • Built-In Wi-Fi: Yes
  • NFC: No

Basic

  • Sensor size: 366.6mm2 (23.50mm x 15.60mm)
  • Weight: 19.6 oz (557 g) includes batteries
